Small snack food extruder machine baked cheetos corn twist curl making machines

Sample Pictures

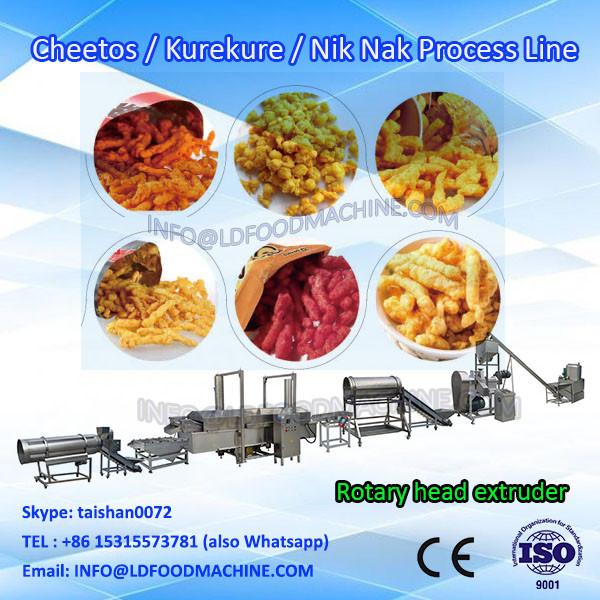

Baked cheetos corn twist curl making machines

1.Kurkure/Cheetos are kind of special extruded snacks, very crunchy and delicious in taste. They are made by a special extrusion process.

2.The corn grits are moisturized by water in the flour mixer and fed to the Rotary Head Extruder. In the extruder, due to the rubbing of two rotary plates, the corn grits are squeezed and twisted to curls shapes. 3.The cutting knives can cut them into required length. The Kurkure/Cheetos can be fried in fryer or toasted in oven and then cooled before flavoring. Seasoning is sprayed onto their surface to get different delicious tastes.

4.Due to their delicious tastes and nutrition, they are quite popular with consumers.

5.The materials of fried cheetos or fried niknaks kurkure machine are stainless steel, it meet the food safty requirement.

6. The snacks food machine production line is fully continuous and automatic.

Mixing Machine

Name: Mixer
Brand: DR
Power:4KW
Output:50KG per time
Size:1.2*0.8*1.7m
It is a mixer which can mix all the raw material (powder form) with water and liquid chemical additives.Capacity:30-50kg per batch.

Kurkure extruder machine

1. Blower to ensure discharge products faster and unblocked,
2. Window on the Hopper to check the raw materials level and quantity easily,
3. Vibrant Motor on the Hopper ensure feed raw materials fast and successfully,
4. Inverters, Conductors and other electronic parts are from World-famous Brands, like FUJI, LG, DELTA.
5. Main Motors are from SIEMENS(CHINA), ensure strong and excellent performance.

Drying Machine

Name:Electrical dryer
Brand:DR
Power:60KW
Output:200-260KG/H
Size:5.0*1.3*2.7m
It is used for drying .The net belt running speed can be controlled to change the food drying time in the dryer.Multi-layer dryer is with compact size than other type dryers.

Flavoring Line

Name:Double roller flavoring machine
Brand:Himax
Power:1.5KW
Size:3.0*1.2*2.0m
The stainless steel flavor feeder is used to spray powder flavor to the drum .We can control the spraying quantity via the different speed which controlled by the soft start.

Introduction of Extruder

DSE65 extruder

capacity: 100-150kg/h
main motor:22kw
size:2600-900-1900mm

DSE75 extruder

capacity:200-260kg/h
main motor:37kw/45kw
size:2800-900-1900mm

DSE85 extruder

capacity:300-500kg/h
main motor:55kw/75kw
size:3200-900-1900mm

the screw of extruder
material :38CrMoAl, including Integral screw,Semi assembled screw and Fully assembled screw。

the barrel of extruder
material:Steel 45#. customer can choose wear-resisting bushing or not

Introduction of the Dryer

Electrical type dryer

heating mode: heating tube.

Fuel oven /Gas oven

heating mode: gas heating/fuel heating

Steam oven

heating mode: steam heating

belt of oven

Chain plate style

belt of oven

mesh belt style

Doritos
